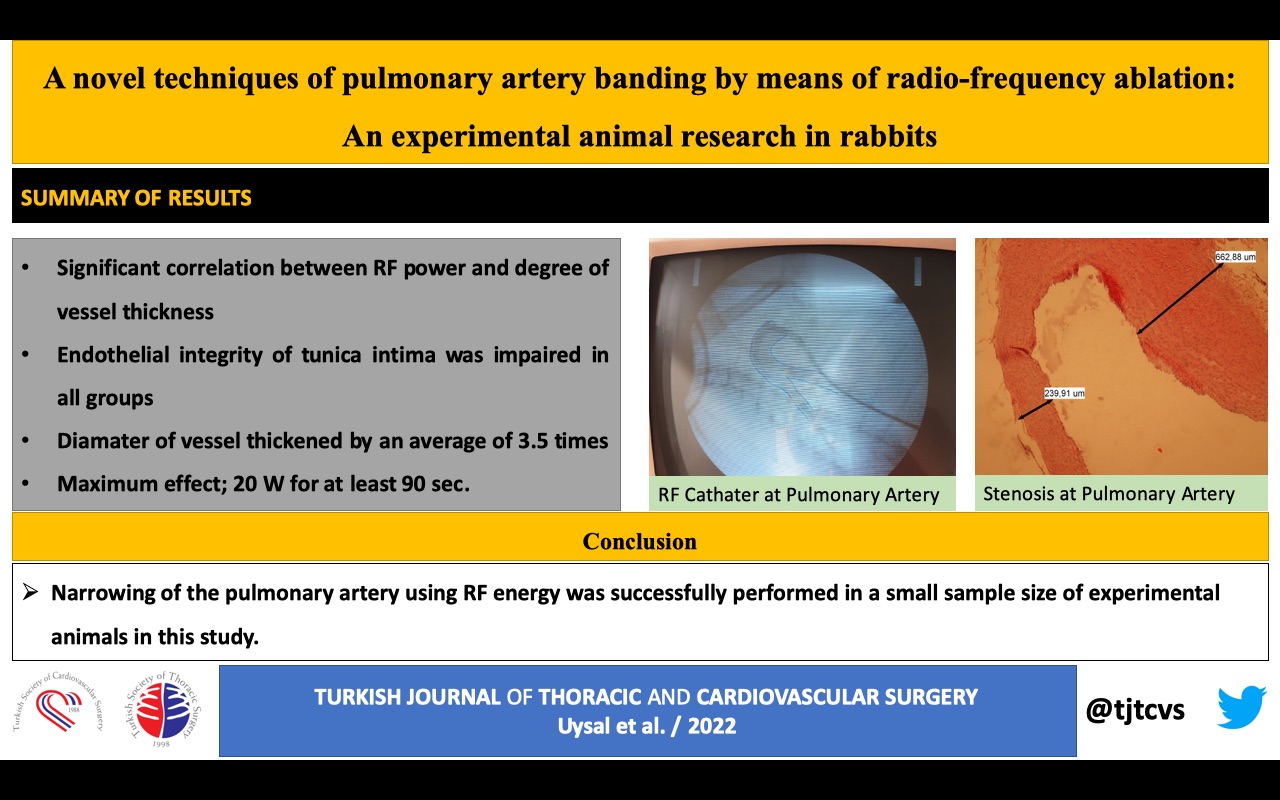

Abstract

Background: The aim of this study was to evaluate the efficacy and feasibility of a novel method of narrowing pulmonary arteries with catheter angiography using radiofrequency energy in rabbits.

Methods: A total of nine New Zealand white rabbits weighing 3.0 to 4.2 kg each were utilized in this experimental study. After the location of pulmonary artery was confirmed by echocardiography and angiography, radiofrequency energy was applied by starting with 5 W energy for the first time and increasing by 5 W, if there was no rupture to a maximum of 20 W. Multiple applications of radiofrequency energy with different durations were performed at different levels of the pulmonary artery. Eight weeks later, surviving rabbits were sacrificed. The pulmonary arteries were removed for histological investigation.

Results: Five rabbits remained alive after the experiment. There was a significant correlation between radiofrequency power and the degree of vessel thickness change in the pulmonary artery. The endothelial integrity of the tunica intima was impaired in all groups and the diameter of vessel was thickened by an average of 3.5 times.

Conclusion: The narrowing of the pulmonary artery using radiofrequency energy was successfully performed in a small sample size of experimental animals in this study.

Pulmonary artery banding (PAB) operation was first applied in 1951 by Muller and Danimann,[1] and has been performed for many years, particularly in cases of congenital heart disease with increased pulmonary blood flow. The most prevalent clinical scenario has been to restrict pulmonary blood flow in patients with pulmonary hypercirculation caused by massive left-to-right shunts. Due to surgical technique advancements and improvements in postoperative care in recent years, this palliative procedure has been mostly replaced by the primary repair procedure. However, the classic surgical approach is also utilized in individuals who are candidates for anatomic biventricular repair and have a morphological right ventricle in the systemic circulation.[2]

Pulmonary artery banding in corrected congenital transposition of the great arteries is used not only to retrain the sub-pulmonary left ventricle, but also as an early preventative therapy in neonates to prevent severe tricuspid regurgitation associated with the morphological (RV) in the systemic position.[3,4] Furthermore, PAB has been shown to improve left ventricle and mitral valve function in young children with left ventricle dilated cardiomyopathy.[5]

In the present study, we developed a novel method of narrowing pulmonary arteries with catheter angiography using radiofrequency (RF) energy in rabbits and aimed to evaluate the efficacy and feasibility of this novel method.

Methods

In this study, nine (5 male, 4 female) New Zealand white rabbits weighing 3.0 to 4.2 kg each were utilized in this experiment (median weight: 3.24 kg). All rabbits were randomly numbered from one to nine.

Intramuscular injections of 50 mg/kg ketamine hydrochloride and 5 mg/kg xylazine hydrochloride were used to anesthetize the rabbits. Intravenous prophylactic ceftriaxone (20 mg/kg) was given to all rabbits before the procedure. Clippers were used to shave the rabbits" anterior neck and back hair. After attaching the grounding pad of an RF generator (ATAKR Plus Generator, Medtronic® Inc., Minneapolis, MN, USA) to each rabbit's back, they were placed in a dorsal recumbent position. Echocardiography with CW Doppler (Philips HP Sonos 5500®, Hewlett-Packard, Co., Andover, MA, USA) was administered before the procedure to determine the transpulmonary gradient. After injecting 2 to 3 mL of 2% lidocaine, a 2-cm vertical midline incision in the right ventral femoral region was made. After the right femoral vein was exposed with the cut-down technique, a 7-Fr introducer sheath (Cordis Avanti®, Johnson & Johnson, New Jersey, USA) was placed into the vein with the assistance of a C-arm fluoroscopy device. Before RF energy was applied, a diagnostic angiogram of the pulmonary artery and its branches was performed using a 5-Fr diagnostic (N.I.H. Cordis®, Johnson & Johnson, New Jersey, USA) catheter. A contrast agent (Omnipaque 300®, Nycomed Imaging AS, Oslo, Norway) was employed at a dose of 3 mL/kg, and the location of the pulmonary valve was determined.

The 7-Fr RF ablation catheter (Marinr Medtronic® Inc., Minneapolis, MN, USA) was, then, placed 1.5 to 2-cm above the pulmonary valve and connected to the generator (Figure 1). After the location was confirmed by echocardiography, RF energy was applied by starting with 5 Watts (W) energy for the first time and increasing by 5 W, if there was no rupture to a maximum of 20 W. In each rabbit, multiple applications of unipolar RF energy with different durations were performed at different levels of the pulmonary artery. Power, temperature, and duration of provided energy were recorded. The duration of the delivered energy was adjusted by the system and automatically stopped when the surrounding tissue impedance increased by more than 50%. The trial was discontinued after the vessel (main pulmonary artery) ruptured. The degree of stenosis in the pulmonary artery was measured during the procedure using CW Doppler. After RF application was completed, the sheath was removed, the femoral vein was sutured, and subcutaneous tissue and skin were sutured in a sterile manner.

Figure 1. The positioning of ablation catheter.

Eight weeks later, surviving rabbits were sacrificed with high-dose propofol. The pulmonary arteries were removed for histological investigation, and the surrounding tissue was macroscopically examined for heat damage. Histopathological examinations were conducted using hematoxylin and eosin stains.

In the histopathological examination, normal vessel thickness (NVT) and vessel diameters in the localization where the RF lesion was given (VTRL) were measured as ?m. The percent change (%) was calculated with the formula (VTRL-NVT) x100/NVT.

Statistical analysis
Statistical analysis was performed using the IBM SPSS version 24.0 software (IBM Corp., Armonk, NY, USA). Descriptive data were expressed in mean ± standard deviation (SD) or number and frequency. The Pearson"s correlation analysis was used to evaluate the relationship between two continuous variables. A p value of <0.05 was considered statistically significant.

Results

Five rabbits remained alive after the experimental operation. Rabbits #4 and #5 died as a result of abdominal perforation while introducing the sheath. These rabbits did not receive any RF energy. Pericardial tamponade occurred in Rabbit #3 during the third RF lesion with 15 W/60 sec/50°C. Pericardiocentesis was performed promptly under echocardiography guidance, and the rabbit was resuscitated successfully. However, the subject died one day after the procedure. Rabbit #6 had anesthesia-induced respiratory arrest after two successful RF applications and no hemopericardium or rupture was observed in this rabbit on postmortem examination.

Prior to RF application, angiography and color Doppler imaging revealed no pulmonary artery stenosis in any of the rabbits. All results are shown in Table 1.

Table 1. Pulmonary artery velocities and vessel thickness before and after radiofrequency energy applications

Rabbit #1: RF application was performed two times with a maximum of 3 W and 50°C (total time: 120 sec). Pulmonary artery CW Doppler velocity was measured as 0.85 and 2.9 m/sec before and immediately after RF application, respectively. Histopathology revealed endothelial irregularity and increased tunica media thickness (Figure 2).

Figure 2. Endothelial irregularity and increased tunica media thickness was seen in Rabbit#1 histopathology.

Rabbit #2: RF application was given twice at a maximum power of 20 W and 30 sec and 15 W and 120 sec with a temperature of 50°C (total time; 150 sec). Pulmonary artery velocity increased to 2.4 m/sec, and there was significant intimal hypertrophy in the histopathological examination (Figure 3).

Figure 3. Histopathological examination revealed significant intimal hypertrophy in Rabbit #2.

Rabbit #7: RF energy was applied successfully twice: once at a maximum power of 15 W for 90 sec, and once at a maximum power of 20 W for 90 sec at a temperature of 50°C (total time: 180 sec). The pulmonary artery velocity was initially measured at 0.67 m/sec and was calculated to be 1.42 m/sec at the end of the treatment. The thickness of the normal and RF applied vessel were 175.92 ?m and 1017.79 ?m, respectively. A red-orange homogeneous thrombus formation was observed in one area of the vessel lumen, which adhered to the vessel endothelium (Figure 4a, b).

Figure 4. Histopathology of pulmonary artery in Rabbit #7; the thickness of the normal and RF applied vessel were 175.92 ?m and 1017.79 ?m, respectively (a), red-orange homogeneous thrombus formation was observed which adhered to the vessel endothelium (b).

Rabbit #8: RF energy was applied three times for a total of 300 sec. The RF energy had a power of 12, 8, and 10 W with periods of 90, 90, and 120 sec, respectively. Pulmonary artery velocity increased to 1.46 m/sec after three RF applications. Histopathological sections revealed compromised endothelial integrity and significant medial layer hypertrophy (Figure 5).

Figure 5. Histopathological sections revealed compromised endothelial integrity and significant medial layer hypertrophy in Rabbit #8.

Rabbit #9: RF energy of 11, 8, and 15 W was applied to the pulmonary artery at intervals of 150-150-150 sec with a total duration of 450 sec and a temperature of 60°C. Following the procedure, the pulmonary artery CW Doppler velocity increased from 0.65 to 1.17 m/sec. Microscopy of the pulmonary artery revealed significant thickness of the tunica media, as well as bleeding and edema (Figure 6).

Figure 6. Microscopy of the pulmonary artery revealed significant thickness of the tunica media as well as bleeding and edema in Rabbit #9.

There was a significant correlation between RF power and the degree of vessel thickness change in the pulmonary artery (p=0.02) (Figure 7).

Figure 7. Positive correlation between radiofrequency energy power and the degree of vessel thickness change in the pulmonary artery.

In histopathology, the endothelial integrity of the tunica intima was impaired in the RF lesion in all groups, and that there were myocyte and fibrocyte irregularities, as well as necrotic areas in the tunica adventitia. In most cases, edema in the tunica adventitia was observed. When the areas affected by the RF performed lesion were compared to other healthy areas, they were thickened by an average of 3.5 times.

Discussion

Although PAB operations are less common these days, they are still applied in complex congenital heart disease cases with increased pulmonary blood flow and single ventricle physiology, particularly in newborns and infants in whom primary repair is not possible. It is also performed in novel indications like dilated cardiomyopathy.[6] Although technically straightforward, PAB has high mortality and morbidity rates even at the most experienced facilities.[7-9] Complications with PAB include erosion and migration of the pulmonary band, which results in insufficient stenosis of the pulmonary artery; distal migration, leading to distortion and stenosis of the branch pulmonary arteries and impingement on the pulmonary valve apparatus.[10] Additionally, the concept of staged surgical operations in complex congenital heart diseases dramatically increases patients" cumulative surgical risk. The endoluminal pulmonary artery band procedure was described as a result of these difficulties.[11] The pulmonary artery is restricted internally in this technique to prevent the band from being displaced, and the patient also benefits from the fact that it may be dilated with catheter angiography. Although the endoluminal band approach has been proven to have lower mortality and morbidity, the usage of cardiopulmonary bypass (CPB) has a substantial drawback.

Radiofrequency radiation is the most often utilized energy source in cardiac catheterization ablation treatments, and it has been effectively utilized in children for many years as a conventional way to treat practically all types of supraventricular tachycardia and certain kinds of ventricular tachycardia.[12] The main goal of this operation is to effectively erode the essential tissue that causes tachycardia and stop it without causing damage to the surrounding tissue. Ablation causes irreversible damage by raising the temperature over 50°C and causing coagulation necrosis in the targeted tissue. The amount of damage to the target tissue is related to the quantity of energy delivered and the degree of contact between the catheter and the tissue. The current density at the electrode tip (related to the amount of energy delivered and the electrode surface area), the electrodemyocardial contact, the catheter tip direction, the applied energy time, and the temperature reached at the electrode tip are the most critical determinants of ablation damage.[13] Only the tissue in direct contact with the electrode tip is strongly affected by heat owing to resistance with this energy, while conductive heat transfer causes the majority of the lesion to proceed slowly. Thermal continuity is a condition in which ablation lesions continue to proliferate even after RF energy is turned off.[14] In vivo and ex vivo investigations have shown that lesions formed with bipolar ablation are deeper, smaller, and more likely to attain transmurality than lesions created with normal unipolar ablation or consecutive unipolar ablation at nearby sites surrounding the region of interest.[15] Considering that it would not be appropriate to use such a powerful mode in a small subject such as a rabbit, we applied standard unipolar RF ablation in our study.

Pulmonary valvotomy application using RF energy has been successfully applied for years in pulmonary atresia cases.[16] Likewise, the treatment of venous varicose veins using the RF energy method has been used quite frequently in recent years.[17] A rabbit model of artery stenosis was effectively described using endovascular RF radiation in one study.[18] In this study, the appropriate energy dose to create more than 50% stenosis was found to be 24 to 26 W for 1.5 min for the aorta, while this value was calculated as 6 W for 1 min for the carotid artery. Histopathological examination showed necrosis of the intima and media smooth muscle layer. The RF Marinr Medtronic® catheter has been widely used for years for ablation in the treatment of arrhythmia; however, it was used for a new purpose for the first time in this study and in this sense this study is unique.

In our study, it was hypothesized that it would be possible to narrow the pulmonary artery using a RF energy source without surgery. A total of nine rabbits were included in the experiment. During femoral vein access, two rabbits had sheath-related abdominal perforation, and RF energy could not be administered to them. These rabbits weighed 3 kg, and perforation was assumed to have happened due to the thick sheath diameter. It was thought that this problem would be eliminated with the lower sheath sizes. Another rabbit received RF energy for the third time at 15 W, and hemopericardium occurred after 150 sec. The rabbit was resuscitated successfully, and the hemopericardium was self-limited, but it died one day later. In the other rabbit that died during the procedure, respiratory depression due to anesthesia occurred after RF energy with 3 W was administered for 60 sec. Although these two rabbits were given RF energy, they were not included in the research due to a lack of follow-up data.

In the current study, velocities were calculated for all rabbits before and after RF. However, it is very difficult to measure the velocity with echocardiography in rabbits and is affected by many factors. The most important of these is the heart rate in rabbits. While normal heart rates were above 150/min, these values were above 200/min in most rabbits due to the effect of ketamine during the procedure. Therefore, changes in vessel diameters were noted and compared as a more precise data rather than transpulmonary gradient.

The remaining five rabbits in the trial were monitored for eight weeks before being sacrificed, and histological investigations were conducted. It was found that the RF energy power and the thickness of the vessel sections in these rabbits had a positive significant correlation. Histopathological examination revealed intimal proliferation, tunica media thickening, and endothelial irregularities. Thrombus formation was detected in Rabbit #7 with the greatest increase in vessel thickness. The second RF energy was given with 20 W and 90 sec in this rabbit, and this lesion was considered to be the most effective. We considered that the maximum effect could be obtained by administering 20 W for at least 90 sec. Nonetheless, additional studies are required with more experimental animals to standardize the power and duration of RF energy.

Another important issue in this study is that RF energy was given to the pulmonary artery accompanied by fluoroscopy and completely incidentally. As a result, the RF lesion in the vessel could not be generated in a circular pattern. This problem was supposed to be readily avoidable using three-dimensional (3D) mapping technologies, which are now widely utilized in the treatment of arrhythmia. Using these mapping technologies, RF energy-given areas could be marked, and a circular and more controlled lesion could be created with a good contact (for example with ThermoCool® SmartTouch® catheter, Biosense Webster, Irvine, CA, USA), establishing a model like the pulmonary band method. More experimental studies using 3D mapping methods are needed to prove this hypothesis.

There are some limitations to this study. The number of subjects in the study was not enough to make a definite comment. Echocardiographic evaluation in rabbits was very difficult due to thorax anatomy and velocity measurements could not be determined clearly due to very fast heart rates during catheter angiography. Therefore, further investigation with a larger population is required to confirm our results and the broader applicability. If the main pulmonary artery can be constricted circularly by standardized RF energy using 3D mapping systems, then the following conditions may result: The transcatheter pulmonary band technique may be developed experimentally for the first time as an alternative to the open surgical method, which is a frequently used method in complex congenital heart diseases, and its use in humans can be discussed in the future. The CPB effect used in pulmonary band operation may be eliminated. The cumulative risk of mortality and morbidity caused by staged surgery, which is frequently used in complex congenital heart diseases, may be reduced. The extremely high mortality rate of open heart surgery can be reduced in patients with low birth weight or whose general condition is very poor to tolerate the operation, where complete correction is not possible immediately, and who have a high risk of pulmonary hypertension. The risk of band migration, which is an important morbidity of pulmonary band operations, can be eliminated. The risk of deterioration of the pulmonary artery structure, which occurs over time as a result of PAB operation and which is sometimes important enough to prevent the final surgery of patients, can be minimized.

In conclusion, the narrowing of the pulmonary artery using radiofrequency energy instead of the surgical pulmonary banding procedure was performed in a small sample size of experimental animals in this study. Based on our study results, this technique should be standardized in future studies with threedimensional mapping systems in future experimental animals.

Ethics Committee Approval: The experiment in this study was conducted in compliance with our institute"s animal care and experimentation rules, which were reviewed and approved by the Institutional Animal Care and Use Committee.

Data Sharing Statement: The data that support the findings of this study are available from the corresponding author upon reasonable request.

Author Contributions: Idea/concept: F.U., T.A., A.G.; Design: F.U., T.A., A.G.; Control/supervision: F.U.; Data collection and/or processing: A.G., I.S.S.; Analysis and/or interpretation: E.Ö., T.A.; Literature review: U.G., B.U., A.G.; Writing the article: F.U., T.A., A.G.; Critical review: Z.A.K.; References and fundings: Z.A.K.; Materials; B.U., U.C., T.A.

Conflict of Interest: The authors declared no conflicts of interest with respect to the authorship and/or publication of this article.

Funding: The authors received no financial support for the research and/or authorship of this article.
